How to Prevent Frequency Masking Like a True Expert in 2025

Frequency masking occurs when two or more sounds occupy overlapping parts of the frequency spectrum, which causes one or more elements to become less audible.

As producers, knowing how to successfully prevent frequency masking can completely transform your mixes 一 making them cleaner, more professional, and full of clarity.

Plus, it helps each instrument and vocal shine in its own space so you can swerve muddled mixes and make sure every part of your track sounds impactful.

This way, your tracks will always feel polished and balanced, no matter how complex your arrangement is.

That’s why I’m breaking down everything you need to know, like:

• What frequency masking is and why it happens ✓
• How overlapping frequencies affect clarity ✓
• Using EQ to carve space in your mix ✓
• Dynamic EQ for real-time masking fixes ✓
• Sidechain compression for kick and bass ✓
• Leveraging the stereo field to prevent masking ✓
• Pro tips for instrument arrangement ✓
• Identifying masking issues with spectrum analyzers ✓
• Mixing vocals to avoid frequency clashes ✓
• Much more about frequency masking ✓

By knowing all about frequency masking, you can straight up tackle issues that lead to unprofessional sound and enhance the clarity of your mixes.

Plus, create space for every element to stand out.

You’ll be able to achieve a balanced mix, deliver a polished final mix, and boost your overall sound like a true boss/professional.

Believe me, your tracks will sound cleaner, more powerful, and ready to compete on any level (which is what you’re aiming for, I’m sure).

What is Frequency Masking Exactly?

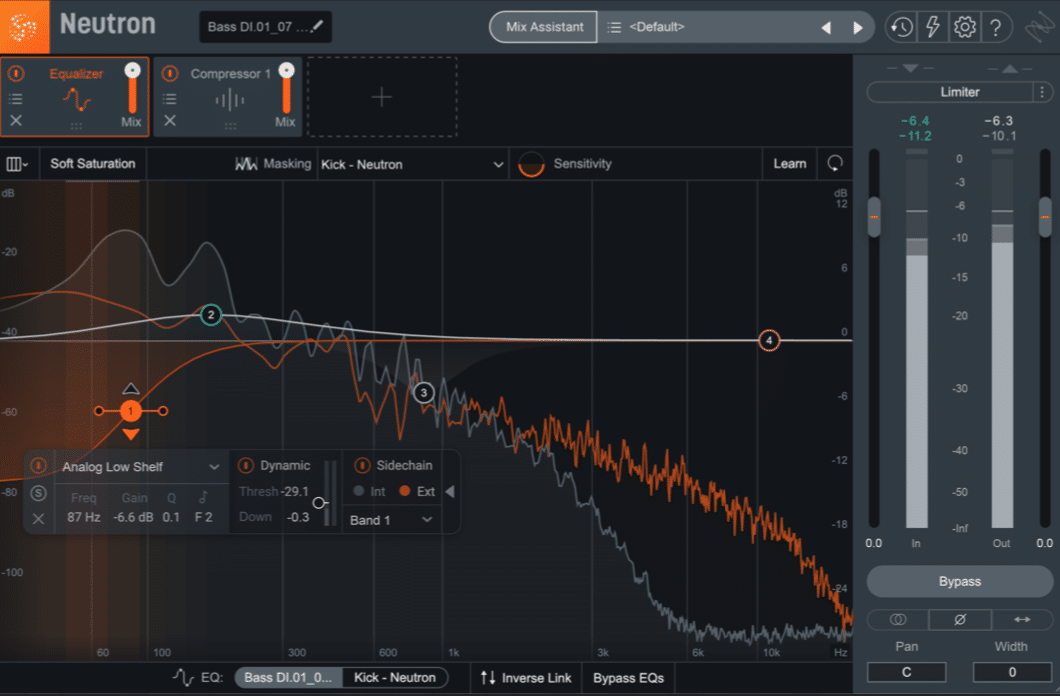

Frequency masking is when two sounds within the same frequency range compete, making one harder to hear, like I mentioned above.

For example, imagine your kick drum and bass overlapping in the low-end… That clash can muddy your mix, robbing it of clarity and impact.

It can also cause MAJOR phase issues since two competing frequencies are occupying the same space.

It happens because our ears struggle to differentiate between overlapping frequencies because of a phenomenon called auditory masking.

This issue often sneaks into tracks when lower frequencies or high frequencies aren’t properly balanced, which leads to a muddled mix that sounds crazy unprofessional.

The masking effect can also occur when two elements/instruments, like electric guitars and bass guitars, sit in similar frequency ranges without enough separation.

Bottom line, frequency masking occurs when sounds occupy overlapping parts of the frequency spectrum 一 preventing clarity and creating an unprofessional sound.

And don’t worry, we’ll be breaking it all down throughout today’s article so you’ll have all the knowledge needed to prevent it beforehand and fix it if it does happen.

The Top Reasons Frequency Masking Occurs

There are several reasons why frequency masking occurs in a mix, most of which come from how sounds and instruments interact across the frequency spectrum. So, let’s kick things off by breaking down the main causes of masking issues so you can understand how to avoid masking altogether.

• Overlapping Frequency Ranges in the Frequency Spectrum

Overlapping frequency ranges are one of the most common causes of frequency masking of course, especially in dense mixes.

For example, the kick drum and bass clash in the low-end all the time, with both fighting for dominance around 60-100 Hz.

To solve this, you can use EQ to carve out space:

• Boost the kick drum at 60 Hz and cut the bass slightly in that same range.
• Boost the bass at 120 Hz to give it its own place.

On the same note, midrange instruments like electric guitars and vocals often compete around 2-4 kHz 一 making the vocals sound buried.

A great trick here is to apply a dynamic EQ to the conflicting element, ducking the midrange only when the vocals are active within that range.

Just make sure to always check for overlapping frequencies with a spectrum analyzer, like the one in FabFilter Pro-Q 4.

And, make subtle, precise adjustments to avoid over-processing.

Remember, even small EQ cuts (around 2-3 dB) can make a huge difference in separating elements without altering their natural tone.

• Frequency Masking Due to Phase Issues

Phase issues are another major contributor to frequency masking, especially in the low-end, where waveforms with similar frequencies can cancel each other out.

This occurs when two signals (like the kick drum and bass) are out of phase 一 causing destructive interference that reduces the perceived power of both elements.

For example, if you’re layering a sub-bass with a bass guitar, their waveforms may interact poorly which create inconsistencies in volume or a thin, weak low-end.

To avoid this, ALWAYS check the phase alignment of low-frequency elements using a phase correlation meter or by flipping the phase (polarity) on one of the tracks.

A good starting point is to use your DAW’s phase inversion tool to flip the polarity of one element (e.g., the kick or bass) and listen for improvements in clarity and punch.

If flipping the phase doesn’t work, try delaying one track slightly by a few milliseconds to align the waveforms more closely.

Another good technique is to use a linear-phase EQ on layered elements, which ensures frequency adjustments don’t add additional phase shifts that could worsen masking.

Just remember that phase issues aren’t limited to the low-end… They can also occur in stereo elements, like wide synth pads or electric guitars.

It leads to comb filtering and masking of important frequencies.

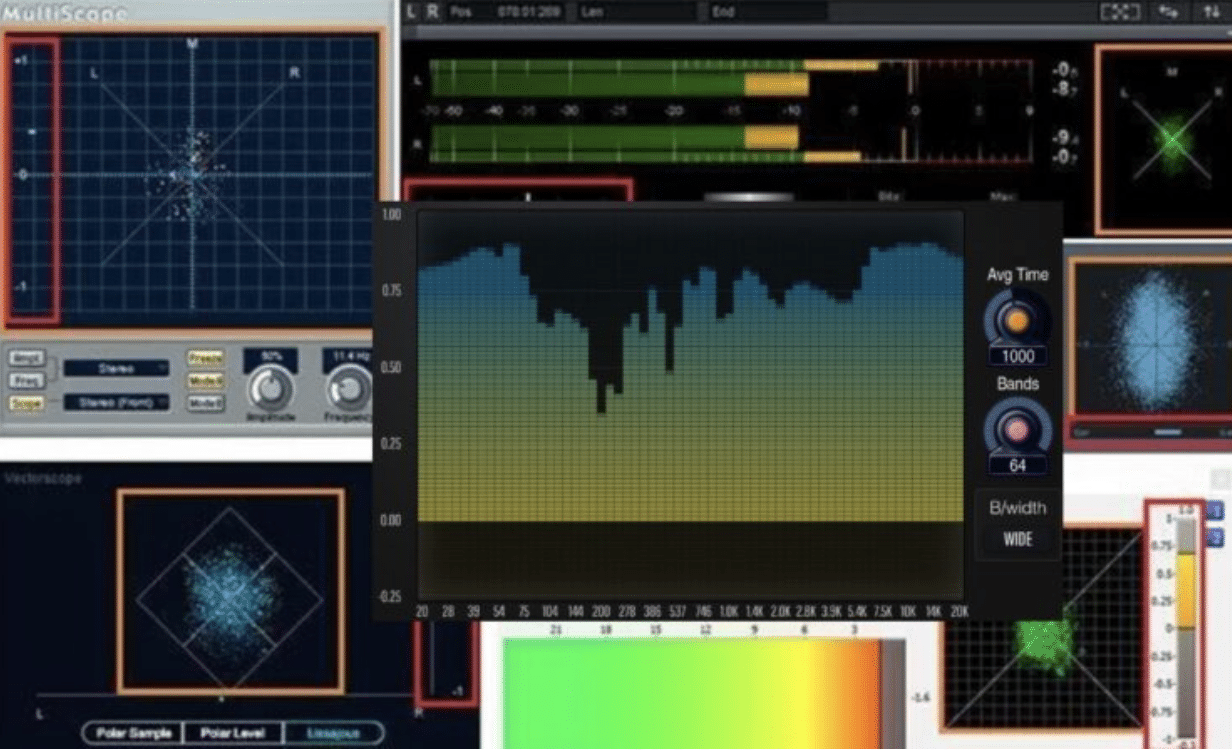

Check your mix in mono regularly to identify phase problems, as these are often more apparent when the stereo field is collapsed.

If you notice a loss of clarity, narrow the stereo width of certain elements or use a mid/side EQ to control the problematic frequencies in the stereo channels.

By addressing phase alignment and monitoring your mix carefully, you can reduce frequency masking caused by phase issues and achieve a tighter, more balanced mix.

This guarantees that your kick hits hard, your bassline remains consistent, and your overall sound feels polished and professional.

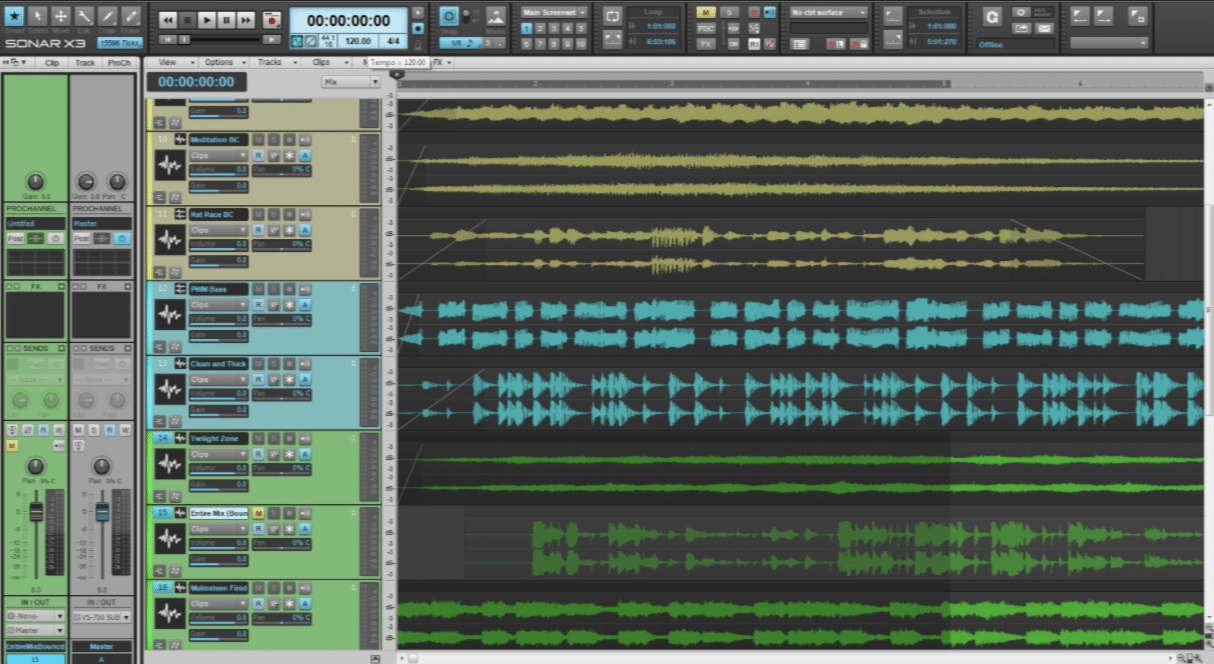

• Instrument Arrangement

The way you arrange instruments in your mix can make or break its clarity, especially when multiple elements occupy the same frequency spectrum.

For example, if you have both bass guitars and electric guitars playing in the same range, try transposing the bassline an octave lower to avoid masking.

Another orchestration technique is to simplify arrangements by reducing the number of instruments being played at the same time.

For instance, drop the synth pads during vocal-heavy sections to let the vocals shine.

You’ll want to use complementary tones as well like pairing brighter acoustic guitars with darker basslines to create a natural separation in the frequency spectrum.

Layering instruments across octaves can also add depth without introducing masking, like a piano melody can sit in the higher frequencies while strings fill out the mids.

Planning your arrangement with intention and leaving room for each and every instrument to breathe will go a long way in preventing frequency masking.

And, in turn, achieving a clean, balanced mix like a professional.

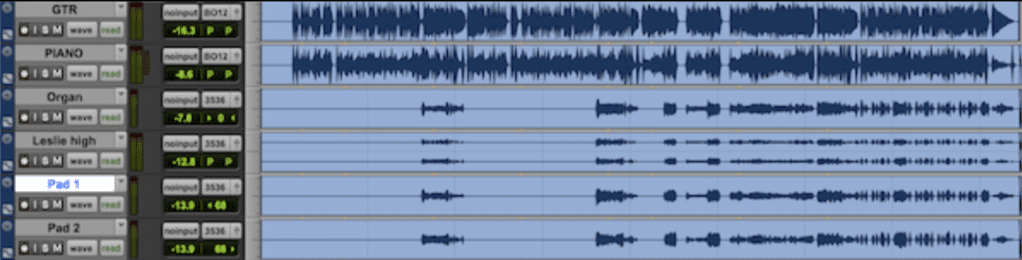

• Poor Mixing Techniques

Poor mixing techniques are probably the biggest cause of frequency masking issues of course, which can completely destroy any clarity, and nobody wants that.

For example, if you’re layering multiple sounds in the low-end without using a high-pass filter to clean up unnecessary frequencies, the masking effect will quickly take over.

Another common mistake is overusing reverb, especially on instruments like vocals or acoustic guitars.

This can smear the frequency spectrum and make elements harder (and sometimes even impossible) to distinguish.

NOTE: This is why using a reverb send/return is best, because you can separately process the signal and fix any issues that may occur such as applying EQ to the reverb signal itself.

If you’re not careful with gain staging, frequency masking can become even worse since louder signals tend to dominate 一 making quieter elements disappear in the mix.

To fix frequency masking caused by poor mixing, use a low-pass filter on instruments like hi-hats and strings to eliminate high frequencies that aren’t needed.

Also, always reference professional mixes to hear how audio engineers balance elements across the frequency range.

Like I always say, there’s nothing more valuable than a reference track.

All-in-all, the key is intentionality and every decision in your mix should create clarity and a professional sound, not destroy it.

• Identifying Frequency Masking in Your Mix

Recognizing frequency masking in your mix is super important if you want to effectively fix masking issues that are happening or could happen.

So, just keep in mind that one  of the most obvious signs is when instruments lose detail and feel buried or drowned out, especially in the low-end.

For instance, if you’re noticing the bass guitar lacks clarity when the kick drum hits, check the overlapping frequencies around 60-100 Hz.

This is where the fundamental frequencies of both usually sit.

Try boosting the kick slightly at 60 Hz and cutting the bass at the same point, while boosting the bass at 120 Hz for added clarity and separation.

In such cases, a quick way to identify the problem is to solo both tracks and listen for areas where they compete.

You can also use a low-pass filter to isolate the bassline’s sub frequencies and adjust its level until it complements the kick.

And for the kick, consider tightening its decay using an envelope or shortening its release time to avoid lingering low-end overlap.

Another clue comes from vocals sounding muffled when they’re competing with overlapping frequencies from instruments like electric guitars or synth pads.

Vocals typically sit between 1-4 kHz, so if guitars or pads are masking them, try using a dynamic EQ to duck those instruments only when the vocals are active.

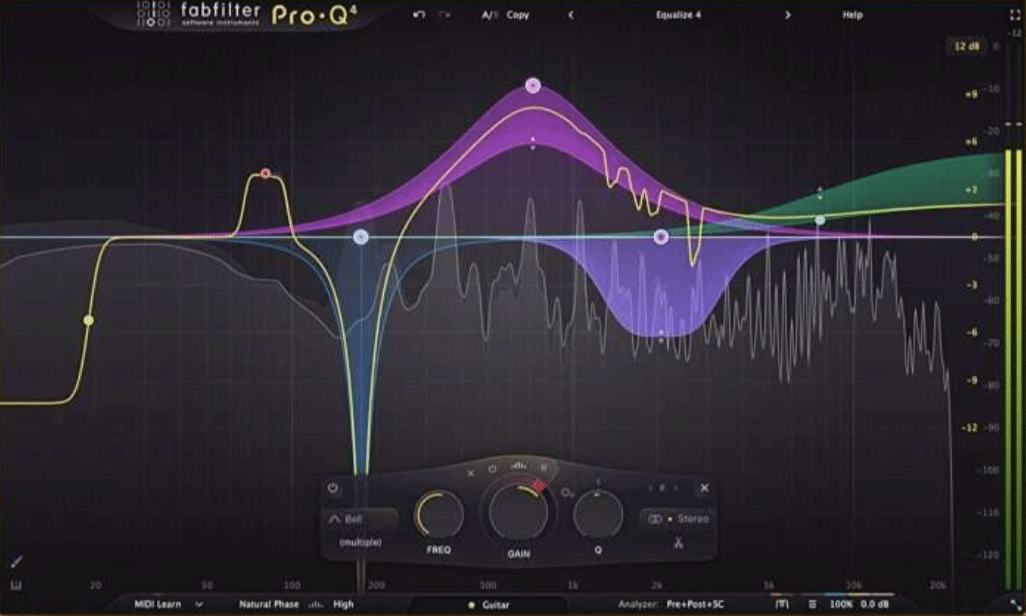

 For example, set the threshold on a dynamic EQ like Pro-Q 4 to -18 dB and reduce the 2-3 kHz range by about 3 dB whenever the vocals come in.

NOTE: To tackle frequency masking, always use spectrum analyzers or frequency meters like the ones in popular plug-ins such as Pro-Q 4 or Neutron 5.

They let you visualize how frequencies overlap in real-time so you can pinpoint the problem areas right away (and super easily I might add).

Pay close attention to where similar frequencies peak, especially in the midrange and low frequencies, and tweak accordingly.

For instance, in the midrange (500 Hz–2 kHz), synths, electric guitars, and even snare drums can compete for attention.

A subtle cut of 2-3 dB in the offending instrument’s frequency range can help create space without killing its tone.

Bottom line, the more you train your ear and rely on analytical tools, the easier it becomes to prevent frequency masking before it ruins your final mix.

Techniques to Fix/Prevent Frequency Masking

Fixing and preventing frequency masking starts with understanding how different elements interact within the frequency spectrum. By using a combination of EQ strategies, dynamic processing, and careful arrangement, you can avoid masking and achieve a balanced mix like a boss. So now let’s dive into the best techniques.

• Equalization (EQ) Strategies

When it comes to fixing frequency masking and making your mix balanced, EQ is one of the most powerful tools around.

You’ll want to start by using a high-pass filter on instruments that don’t need low-end energy, like hi-hats or vocals 一 cutting everything below 80-100Hz.

This will help you avoid unnecessary frequencies clashing with the kick and bass.

For example, if your bass guitars are masking the kick drum, you can cut a small notch at around 60Hz on the bass to create space for the kick to hit harder.

On the same note, use a low-pass filter on synth pads or strings to clean up high frequencies above 12-15kHz that might compete with the hi-hats or cymbals.

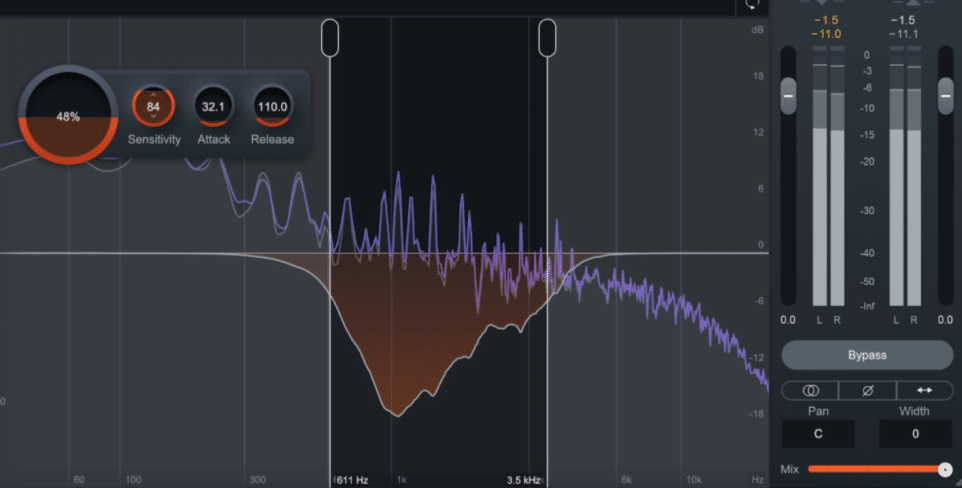

Dynamic EQ can also help tackle frequency masking by targeting specific problem areas only when they become an issue.

For instance, reducing the 250Hz range on your acoustic guitars when the vocals are active.

NOTE: Always use narrow Q settings for surgical cuts (around 3-5 dB reductions) and wider Qs for tonal adjustments to avoid making your mix sound unnatural.

The key is to balance each element’s frequency range while listening carefully to how they interact, ensuring your final mix maintains clarity and separation.

• Panning and Stereo Imaging

Panning and stereo imaging are two more essential techniques for preventing frequency masking and creating space within your mix.

Start by panning supporting instruments like rhythm guitars or secondary synths slightly left and right, around 50-70% on each side.

This will free up the center for critical elements like the kick, bass, and vocals.

For instance, panning two rhythm guitars hard left and right, or offsetting them slightly (70% left and 60% right), creates a natural stereo width without cluttering the midrange.

Let’s say your electric guitars are clashing with the vocals in the midrange… panning them away from the center can help the vocals stand out (without EQing them to death).

A good starting point is to pan the guitars about 60% left and right and leave the vocals in the center.

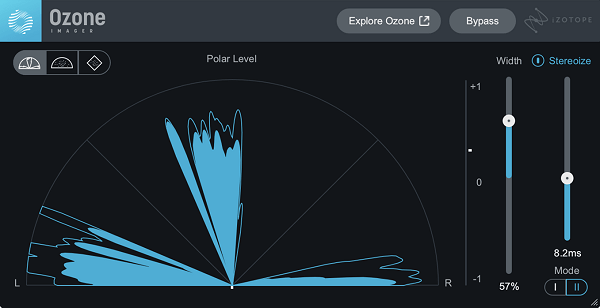

Use stereo imaging plug-ins, such as Ozone Imager, to widen elements like pads or strings so they occupy the stereo field rather than competing for space in the center.

A slight boost in the stereo width of synth pads, for example, can push them outward 一 leaving room for lead vocals and percussion.

Set the width parameter to around 120% for subtle enhancement, but avoid over-widening to prevent phase issues.

Just be careful with low-end instruments like the kick drum and bass, as they should stay in mono to avoid phase issues and keep the low frequencies tight.

Another great tip is to use subtle automation on panning for elements like hi-hats or percussion to create subtle movement, which helps to reduce masking over time.

For instance, automate a hi-hat to shift gently between 20% left and 20% right during a chorus to create a sense of motion/excitement without overpowering anything.

By carefully planning where each element sits in the stereo field, you’ll achieve a professional sound with minimal masking issues.

While enhancing the overall soundstage of your mix too, of course.

• Dynamic Processing

Dynamic processing is another great way to tackle frequency masking by controlling the levels of competing sounds in your mix.

For example, multiband compression can focus on specific frequency ranges.

This way, you can compress only the midrange of your bass guitars if they’re clashing with the kick drum’s low-end, and to do so:

• Set the threshold slightly above the average signal level (e.g., -24 dB for subtle processing)
• Set a ratio of 3:1 for transparent control.
• Use a fast attack (around 10-20ms) to catch transients
• Use a moderate release (100-200ms) to ensure smooth recovery

This will help you keep the dynamic EQ adjustments on point rather than abrupt and all over the place.

Another option is to use expansion, which increases the contrast between quiet and loud parts in a frequency range.

This helps instruments like hi-hats or acoustic guitars stand out in busy sections.

For sounds that overlap heavily, like two instruments in the low-end, sidechain compression (discussed below) can dynamically carve space in real-time as well.

Always listen closely to how dynamic processors affect the overall sound and tweak parameters for clarity without sacrificing the energy of your mix.

• The Sidechain Compression Technique

Sidechain compression is one of the most effective, popular techniques for fixing frequency masking between the kick drum and bass.

This process ducks the bass every time the kick hits so both elements remain clear and impactful, just like they should.

For instance, if your kick drum emphasizes 60 Hz while your bassline overlaps in a similar range, sidechaining makes sure each sound occupies its space without issues.

To set it up, route your kick drum as the trigger for a compressor applied to your bass track.

Adjust the threshold so that the compressor only activates when the kick hits (typically around -20 dB) and use a ratio of 4:1 to create noticeable ducking without making the bass sound unnatural.

NOTE: A soft knee setting often works best for bass, as it smooths the compression curve and keeps the transitions subtle and musical.

For even more precise control, set the attack time fast (1-10ms) so the compressor engages immediately when the kick hits, and a release time of around 100ms.

This will allow the bass to recover naturally between kicks.

Just be careful when it comes to the release because if it’s too short, the bass may pump aggressively.

On the other hand, if it’s too long, it might feel disconnected from the rhythm of the track, and you don’t want that either (aim for the perfect balance).

Beyond the low-end, sidechain compression can also work wonders on other instruments.

For example, sidechain a synth pad to your vocals to ensure the pad doesn’t overwhelm the vocal clarity during dense sections.

You can also try sidechaining percussion elements like shakers or hi-hats to claps or snares for more rhythmic clarity and space in your mix.

Plug-ins like FabFilter Pro-C 2 or Waves C1 Compressor make sidechain compression super easy to apply, with detailed control over attack, release, and gain reduction.

And they usually have visualizers so you can see just how much compression is being applied and go from there.

When automated the right way, sidechain compression not only resolves frequency masking but also adds a dynamic, polished quality to your mix.

It’s a versatile technique that makes sure your low-end stays punchy while other elements in the mix remain distinct and balanced.

• Pro Tip: The Role of Psychoacoustics in Frequency Masking

Psychoacoustics (which is the way our brains perceive sound) plays a massive role in frequency masking.

For example, our ears naturally focus more on midrange frequencies, which is why vocals typically take center stage in a mix.

This is often referred to as the “presence range,” sitting between 2-5 kHz, where our hearing is most sensitive.

If vocals are clashing with guitars or synths in this range, the listener’s attention might become divided, which causes the vocals to feel buried.

By using the proper psychoacoustic technique, you can shape your mix to prioritize what listeners naturally hear.

A great example is slightly boosting the 3-4 kHz range on your vocal track to enhance clarity and presence so it grabs attention without overwhelming the mix.

The masking effect can also be manipulated…

For instance, using subtle distortion on bass guitars can enhance harmonic content 一  helping them cut through without clashing with the kick drum.

Adding harmonic saturation at around 2-3 kHz can give the bass more character and presence in the mix, making it audible on smaller speakers that don’t reproduce low frequencies as well.

By understanding how the brain processes sound, you can avoid masking issues while creating space and clarity in your mix.

Final Thoughts

And there you have it: everything you need to know about frequency masking and how to successfully prevent it.

From understanding overlapping frequency ranges and phase issues to using EQ, dynamic processing, and stereo imaging techniques, your mixes will be on point.

Just don’t forget to monitor your mix in mono, use spectrum analyzers for real-time feedback, or experiment with arrangement techniques to create space for every element.

This way, everything will always be clear, professional, and impactful.

As a special bonus, you’ve got to check out these 3 Free Project Files that show you exactly how to create beats, from start to finish.

You’ll see how frequency masking is completely eliminated by using the techniques we covered in today’s article.

These project files break down every step, designed by professional producers and sound designers, giving you everything you need to know.

And the best part is they’re 100% royalty-free, so you can use them however you’d like in your own tracks.

Bottom line, when it comes to frequency masking, it’s all about creating space and ensuring every element in your mix has its own place.

Just keep in mind that you should always pay attention to the frequency spectrum and phase alignment.

Plus, reference professional mixes, experiment with different tools, and always think outside of the box (that’s where all the magic happens).

By doing this, your tracks will sound polished, dynamic, and ready to stand out on any platform.

Until next time…
